Балансировочные станки для роторов

Для задач:
Для деталей:
Технические характеристики
Технические характеристики
Масса балансируемых роторов, кг Диаметр балансируемых роторов, мм Расстояние между серединами опорных шеек ротора, мм Диаметр опорных шеек ротора, мм Минимальный достижимый остаточный дисбаланс Мощность привода, кВт Тип привода Габариты станка ДхВхГ, мм Масса механической части станка (на станине стандартной длинны), кг Напряжение питания В/Гц/Фаз

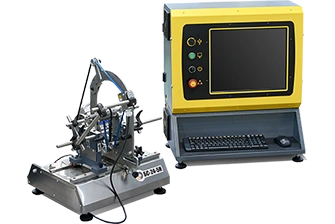

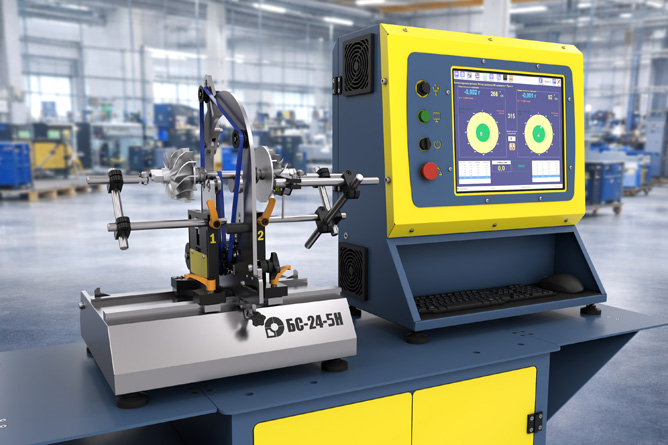

BS-24-5H 0,02 - 5 5-420 15-350 5-30 0,05 0,09 Ременной 440х400х800 47 220/50/1

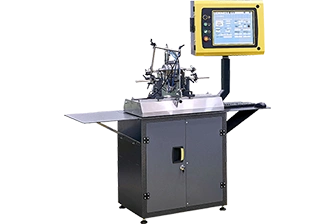

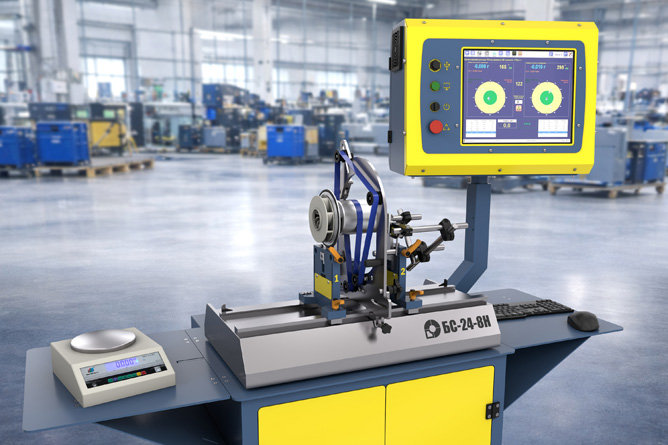

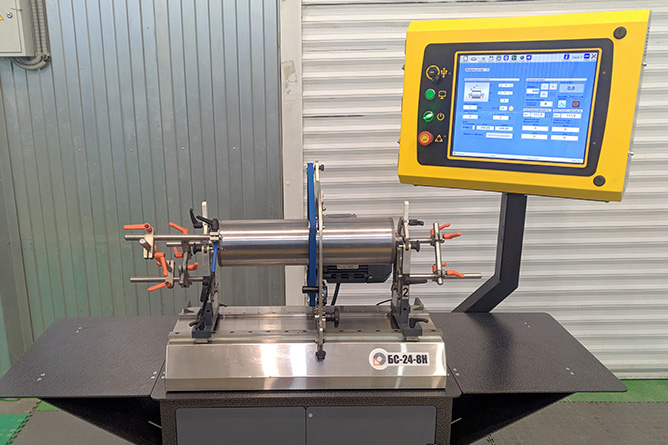

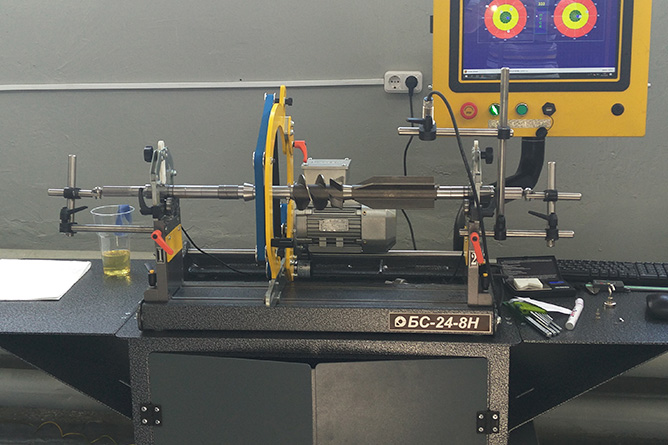

BS-24-8H 0,02 - 10 5-400 20-550 5-30 0,05 0,37 Ременной 670х420х360 68 220/50/1

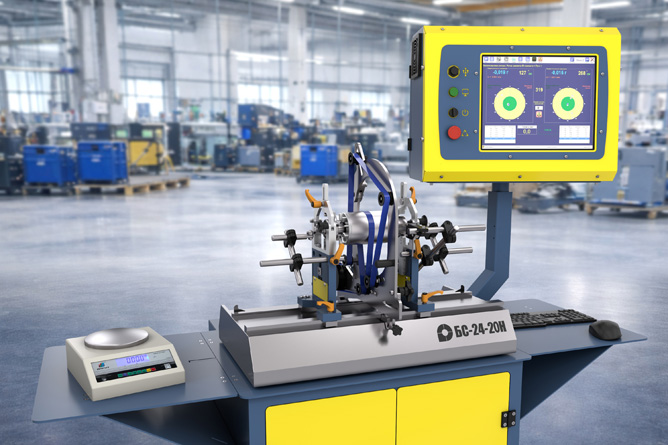

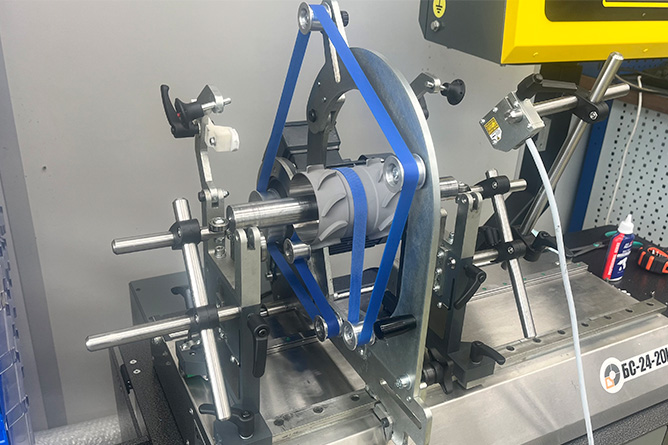

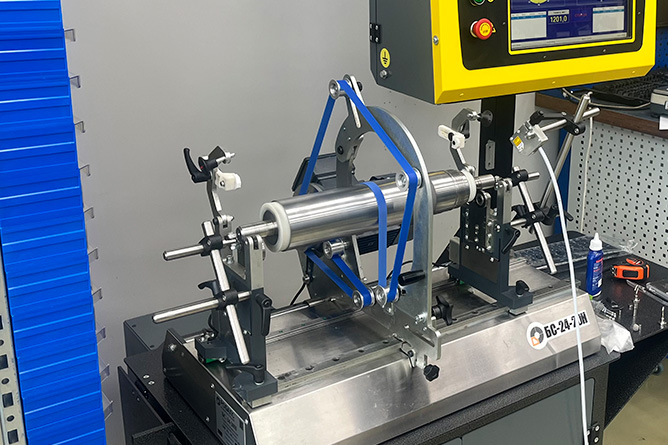

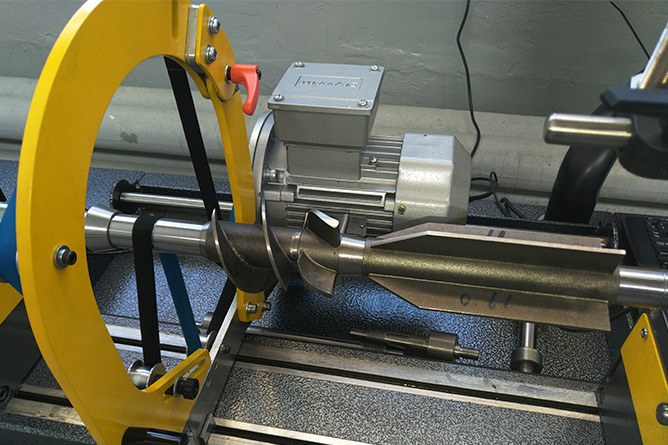

BS-24-20H 0,02 - 20 5-420 20-550 5-32 0,05 0,37 Ременной 670х420х360 73 220/50/1

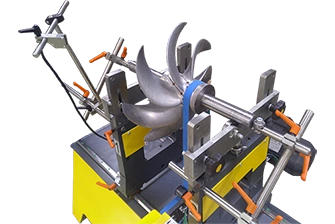

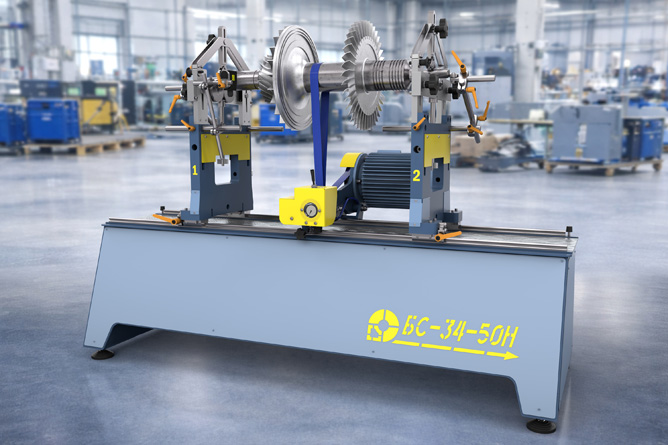

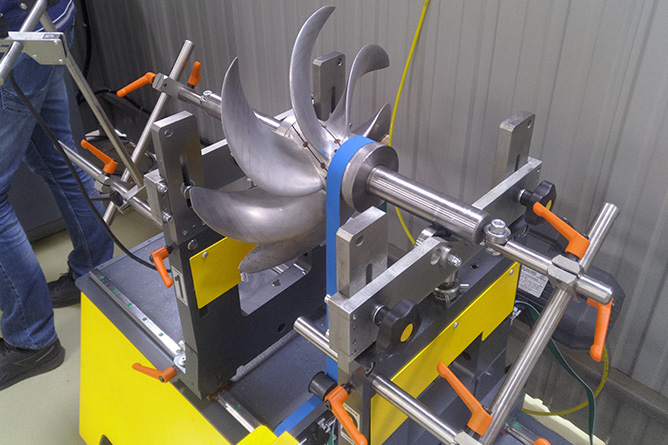

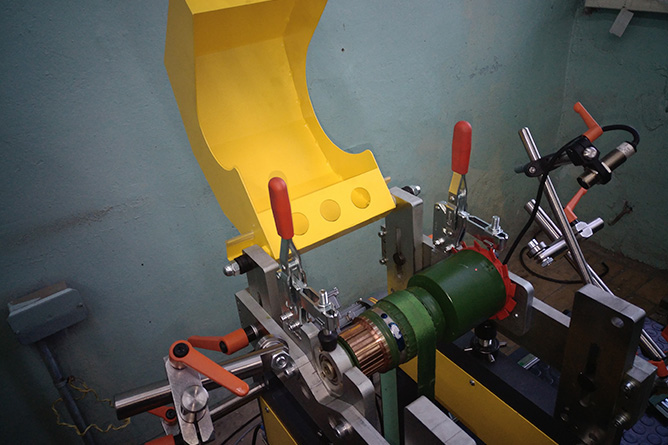

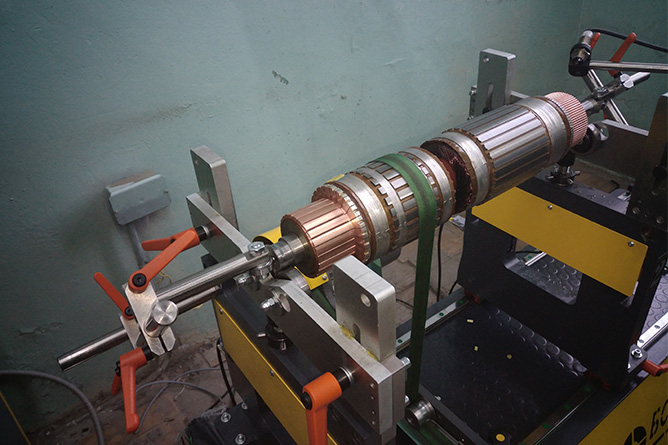

BS-34-50H 0,2 - 60 1040 * 20-1260 * 11-160 0,05 0,75 Ременной / Карданный / Комбинированный 1550х1100х800 610 380/50/3

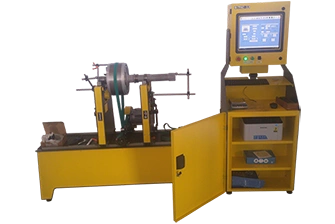

BS-34-50S 0,2 - 60 1000 * 20-1200 * 12-160 0,05 0,75 Ременной / Карданный / Комбинированный 1550х1100х800 590 380/50/3

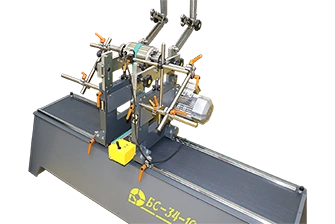

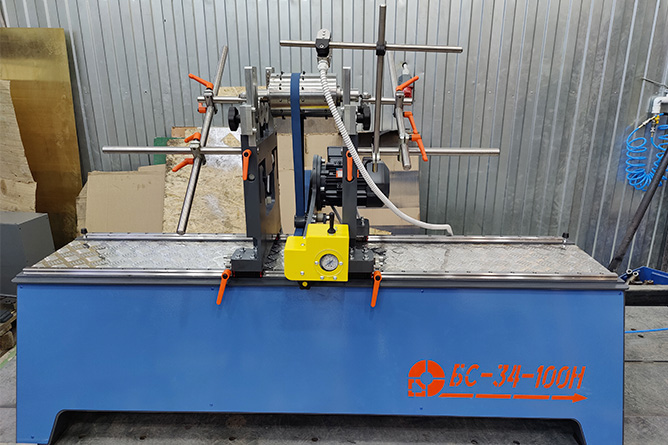

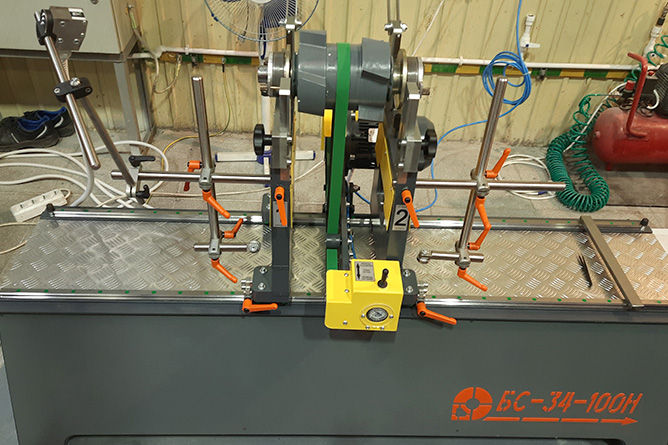

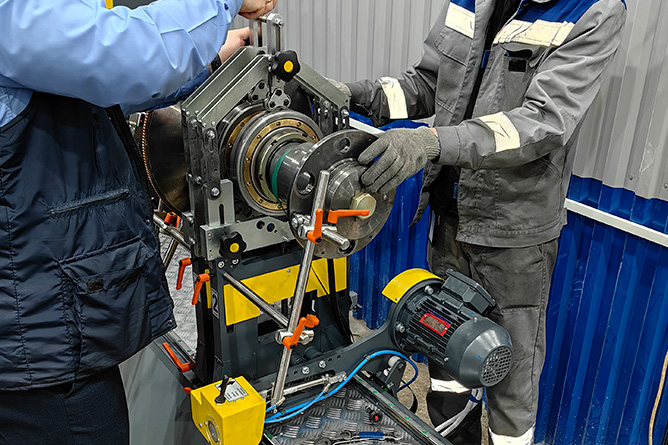

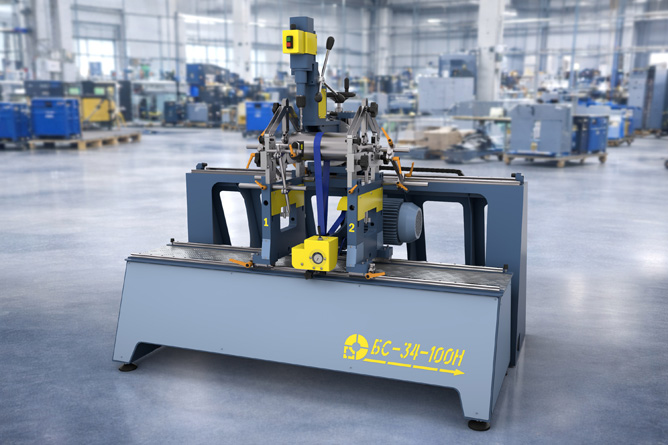

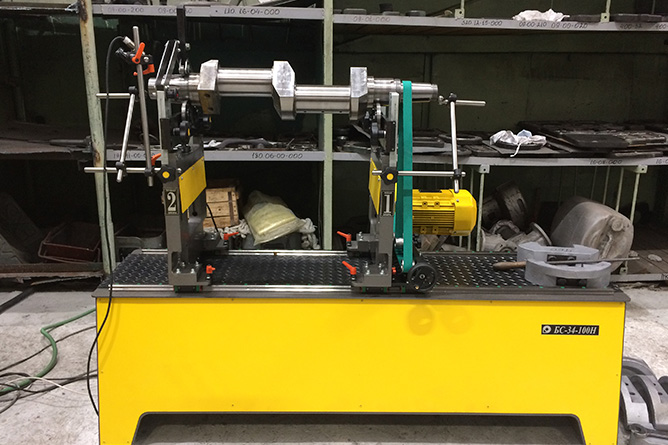

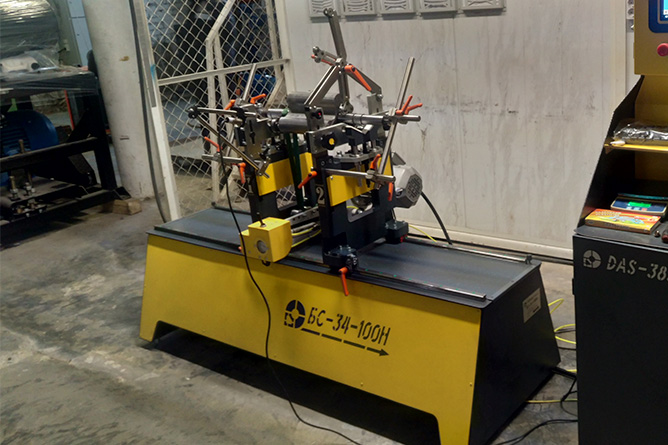

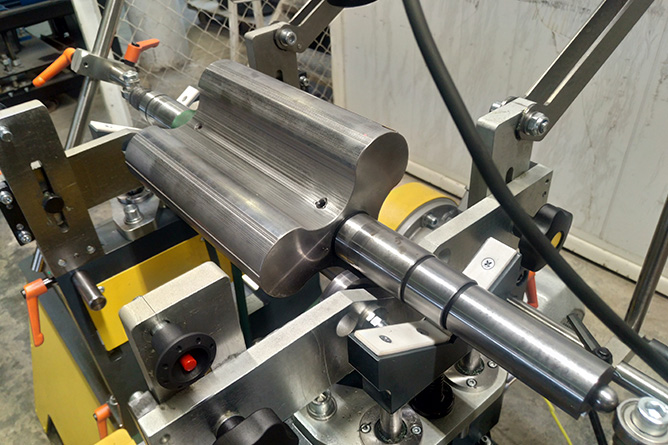

BS-34-100H 0,5 - 150 1070 * 20-1450 * 10-170 0,05 1,1 Ременной / Карданный / Комбинированный 1700х1100х820 770 380/50/3

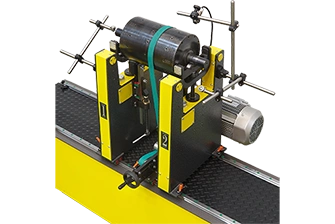

BS-34-100S 0,5 - 150 1000 * 20-1400 * 12-160 0,05 1,1 Ременной / Карданный / Комбинированный 1700х1100х820 690 380/50/3

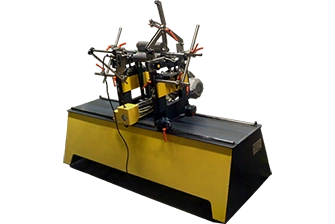

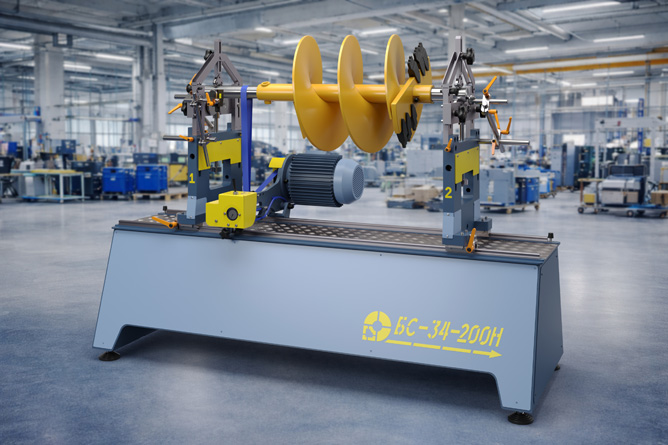

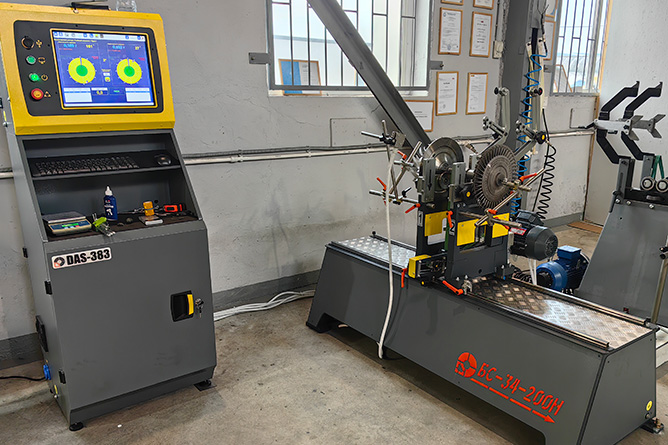

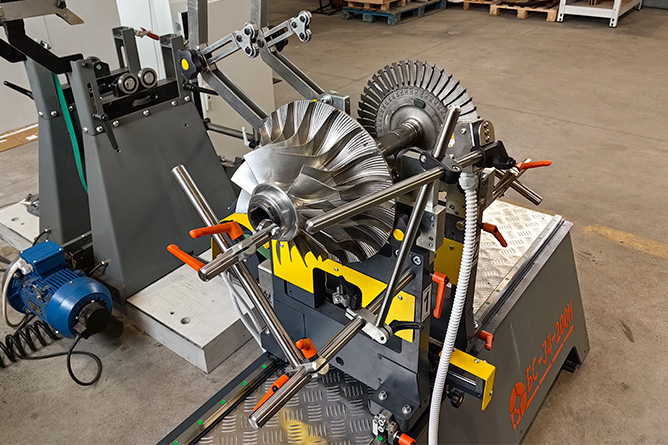

BS-34-200H 0,5 - 200 1070 * 20-1450 * 10-170 0,05 1,5 Ременной / Карданный / Комбинированный 1700х1100х820 790 380/50/3

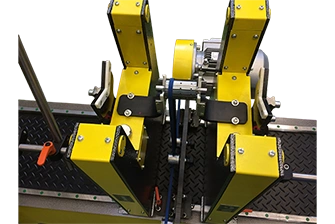

BS-34-200S 0,5 - 200 1000 * 20-1200 * 12-160 0,05 1,5 Ременной / Карданный / Комбинированный 1700х1100х820 750 380/50/3

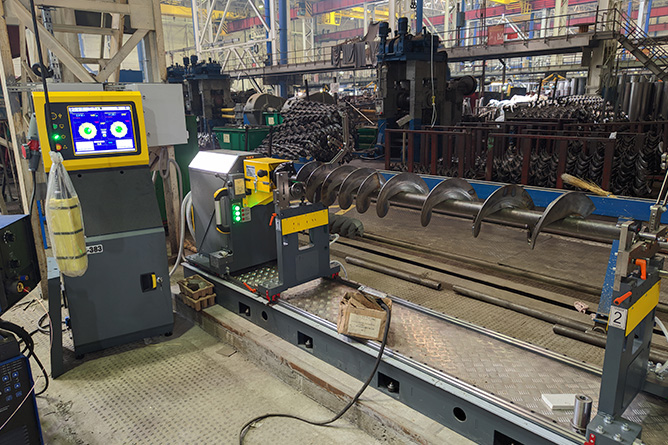

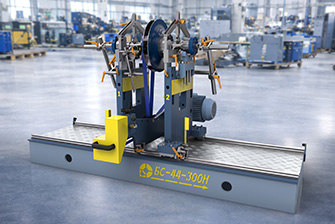

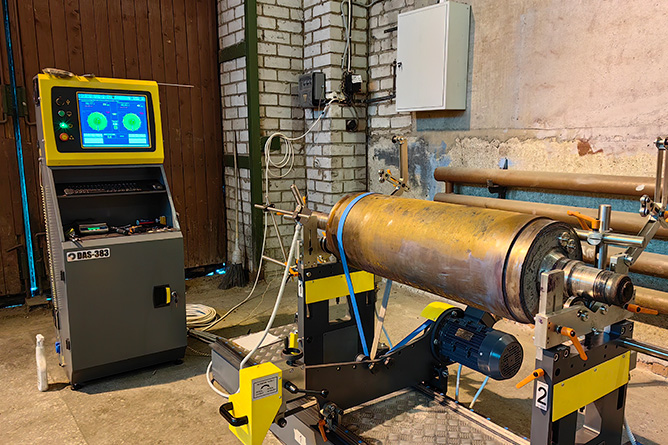

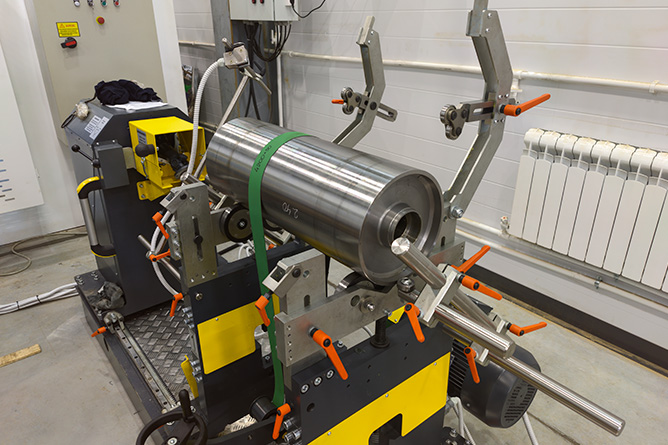

BS-44-300H 1,6 - 400 1500 * 10/80-1700 * 15-190 0,05 4,0 Ременной / Карданный / Комбинированный 2000х1200х1200 680 380/50/3

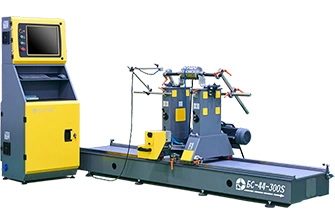

BS-44-300S 1,6 - 400 1600 * 10/80-1650 * 12-140 0,05 4,0 Ременной / Карданный / Комбинированный 2000х1200х1200 630 380/50/3

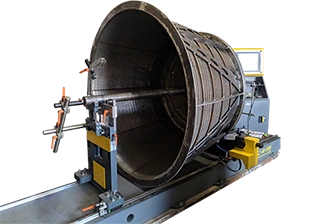

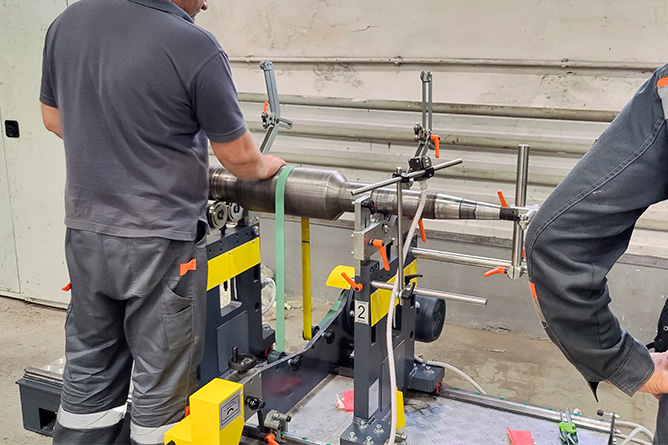

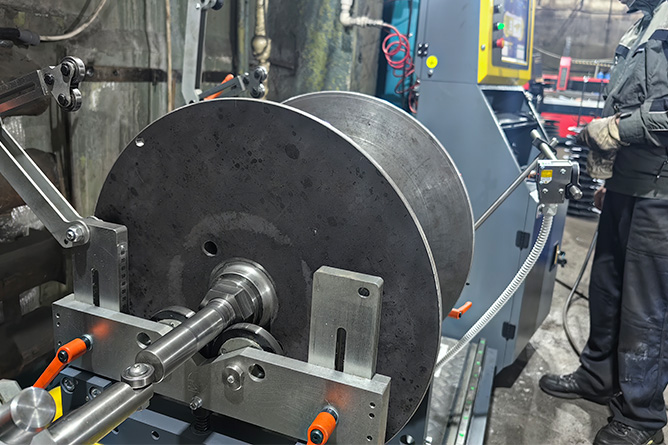

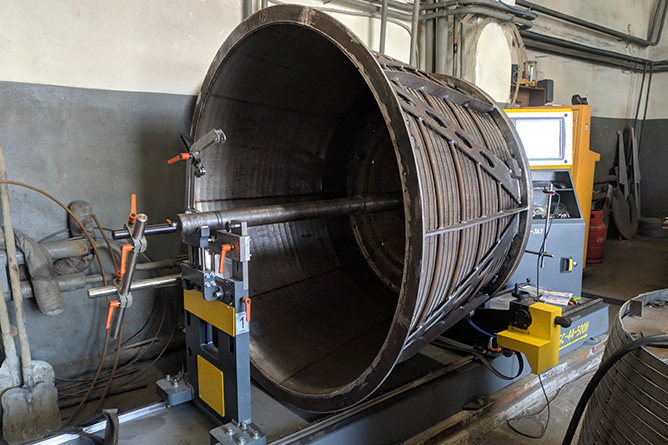

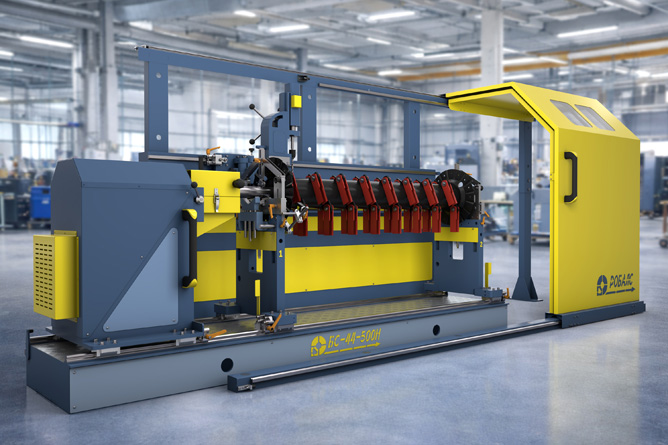

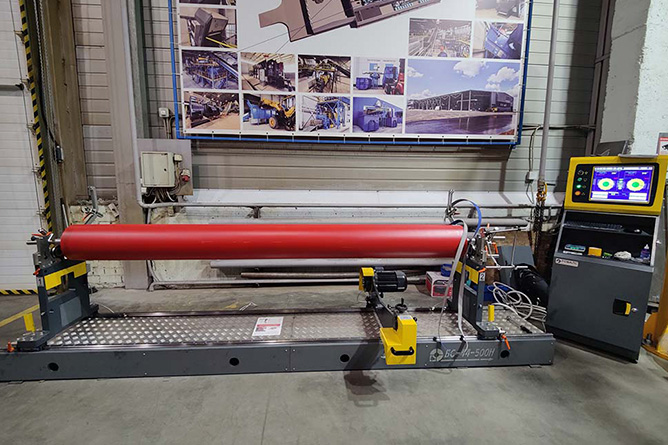

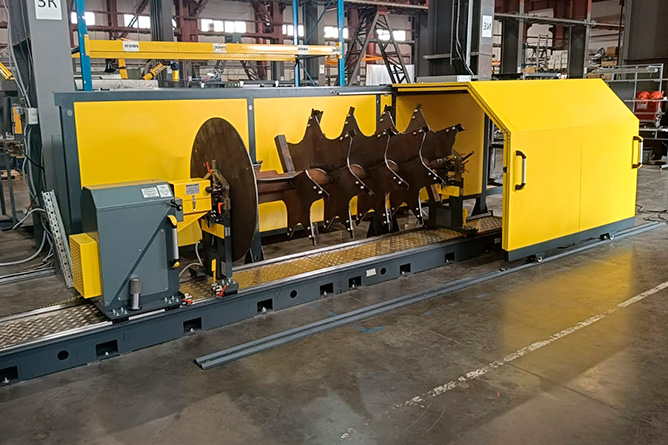

BS-44-500H 3 - 700 1500 * 10/80-1700 * 20-180 0,05 5,5 Ременной / Карданный / Комбинированный 2000х1200х1200 790 380/50/3

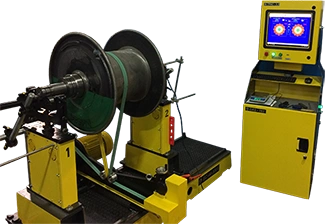

BS-44-500S 5 - 600 1600 * 10/80-1650 * 12-140 0,05 5,5 Ременной / Карданный / Комбинированный 2000х1200х1200 740 380/50/3

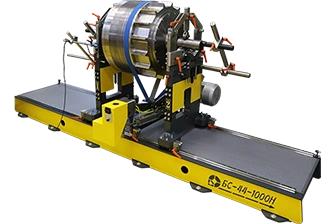

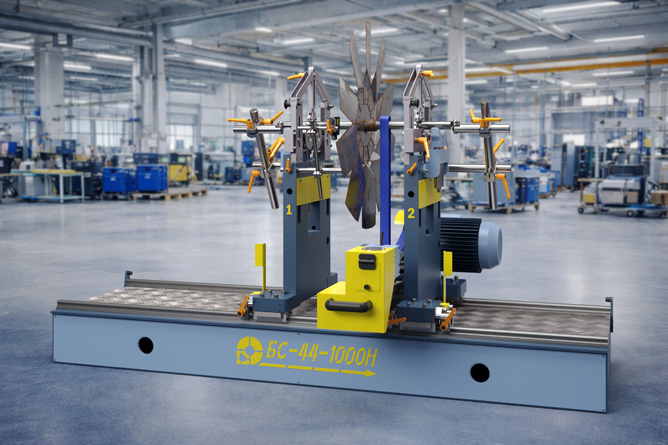

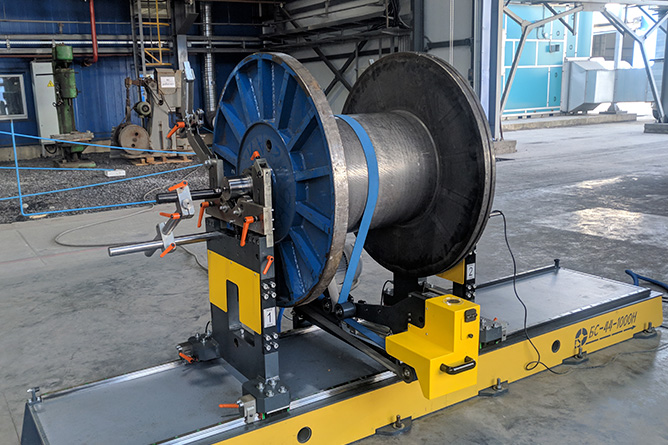

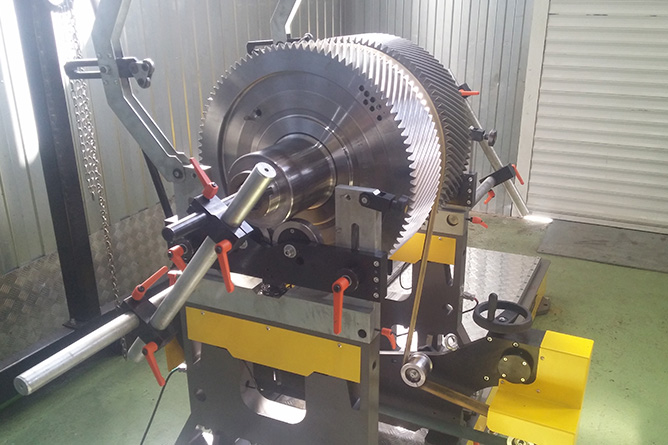

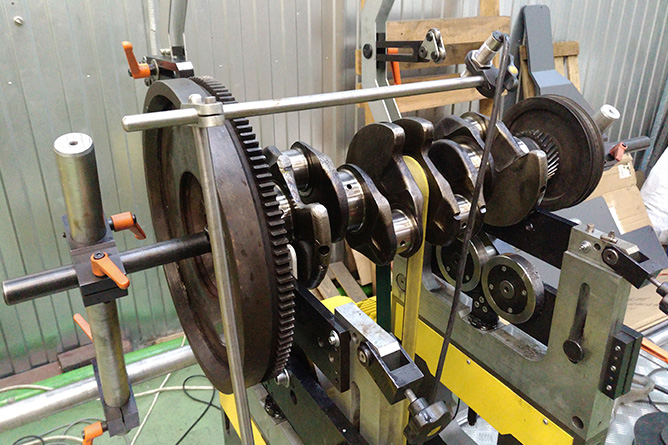

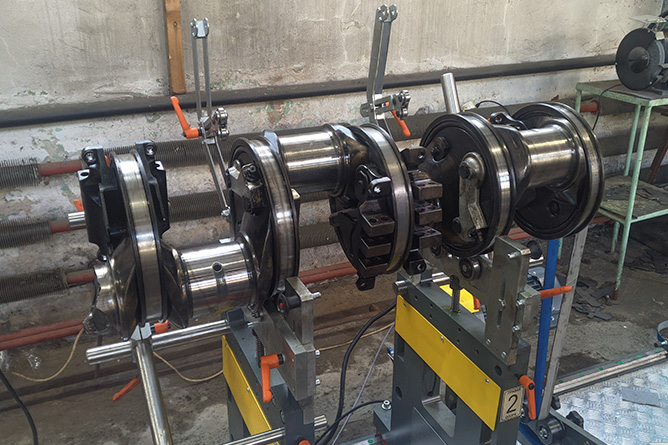

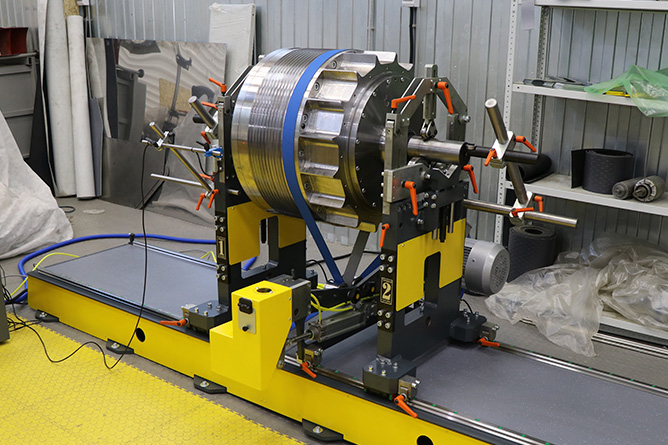

BS-44-1000H 5 - 1500 1700 * 30/120 - 1650 * 20-230 0,1 11,0 Ременной / Карданный / Комбинированный 2000х1400х1400 1170 380/50/3

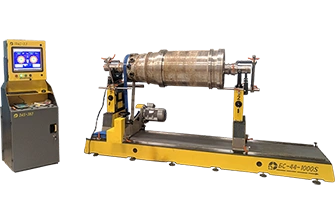

BS-44-1000S 5 - 1500 1850 * 30/120 - 1550 * 15-250 0,1 11,0 Ременной / Карданный / Комбинированный 2000х1400х1400 1085 380/ 50/ 3

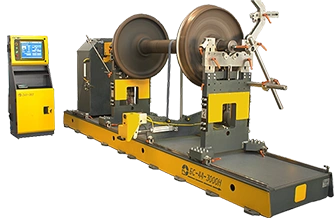

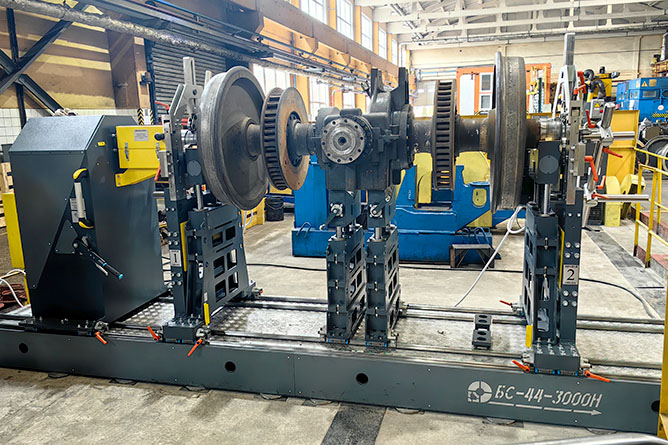

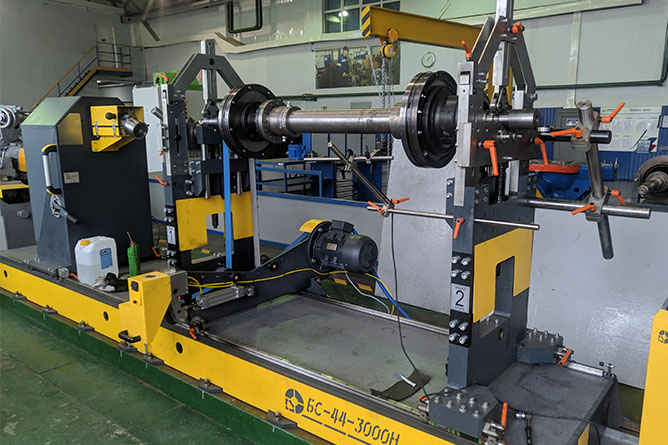

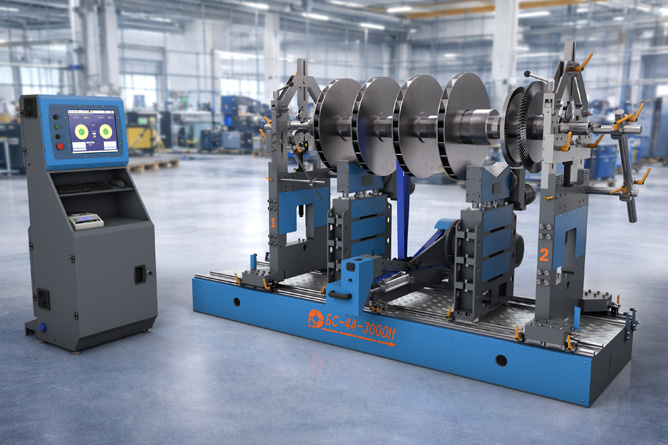

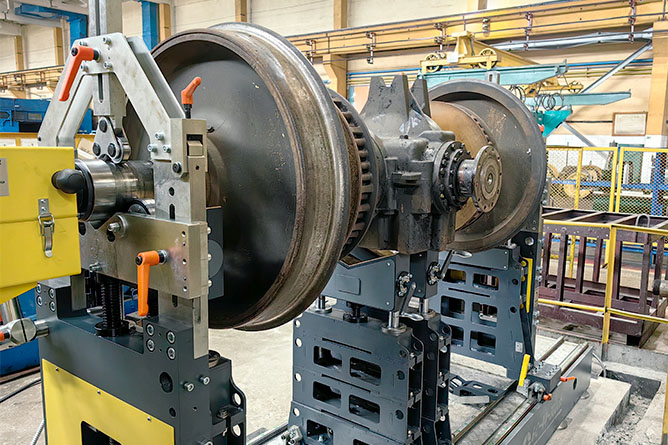

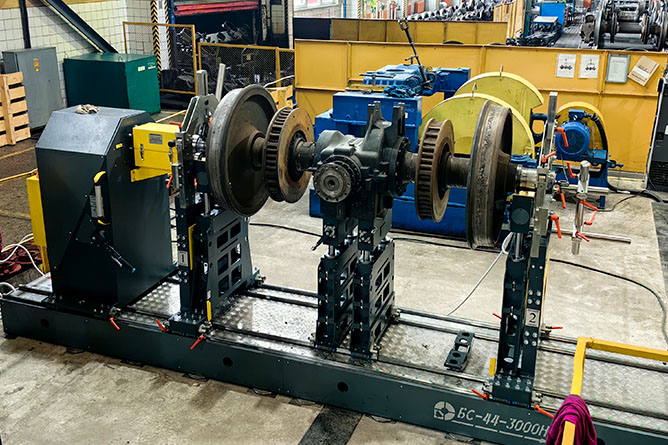

BS-44-3000H 16 - 4000 2400 * 30/135 - 1500 * 25-270 0,1 18,5 Ременной / Карданный / Комбинированный 2000х1600х1400 1900 380/ 50/ 3

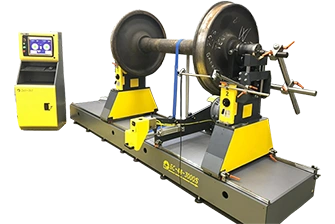

BS-44-3000S 16 - 4000 2300 * 30/135 - 1480 * 20-290 0,1 18,5 Ременной / Карданный / Комбинированный 2000х1600х1400 1799 380/ 50/ 3

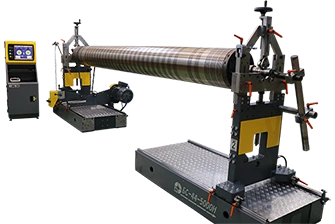

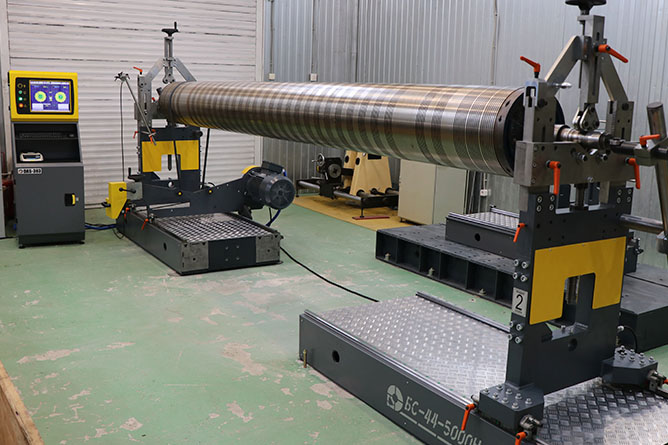

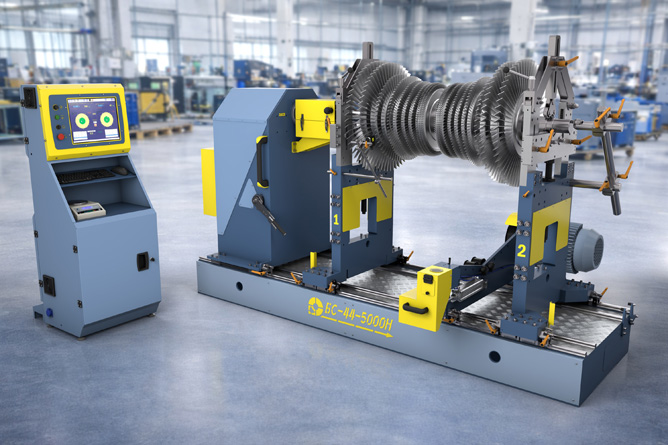

BS-44-5000H 30 - 6000 2400 * 40/140 - 3500 * 20-300 0,2 22,0 Ременной / Карданный / Комбинированный 2000х1750х1400 2150 380/ 50/ 3

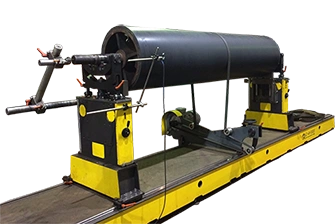

BS-44-5000S 30 - 6000 2250 * 40/140 - 3400 * 20-350 0,2 22,0 Ременной / Карданный / Комбинированный 2000х1750х1400 2050 380/ 50/ 3

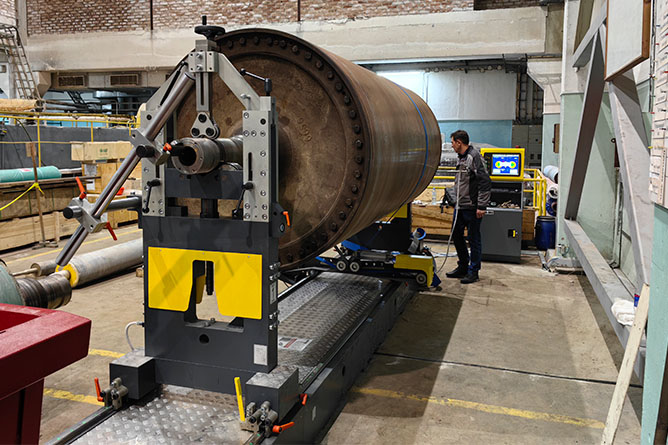

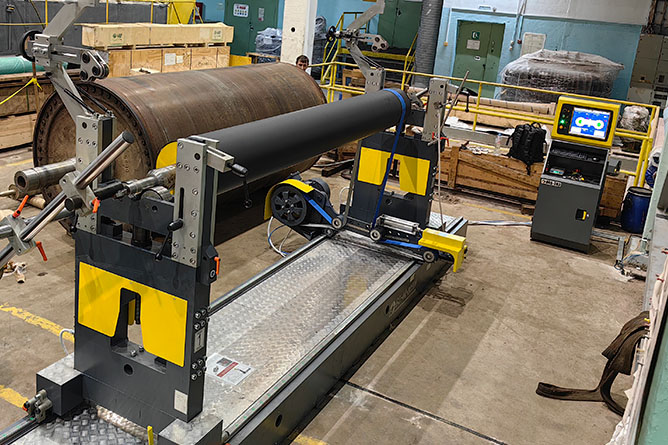

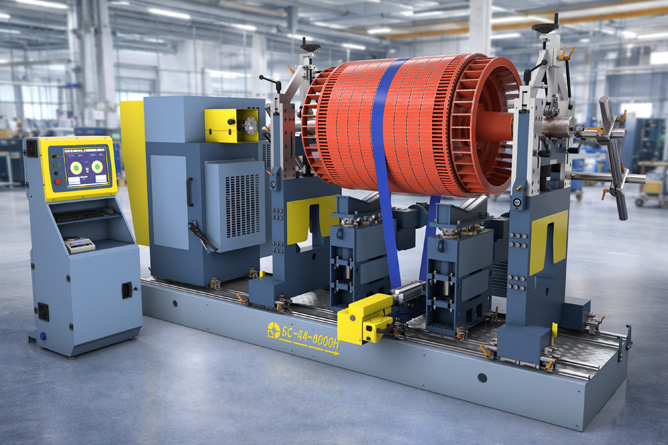

BS-44-8000H 30 - 8000 2850 * 65/250-5700 * 20-310 0,25 30,0 Ременной / Карданный / Комбинированный 4000х1700х1900 4150 380/ 50/ 3

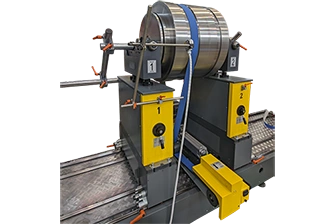

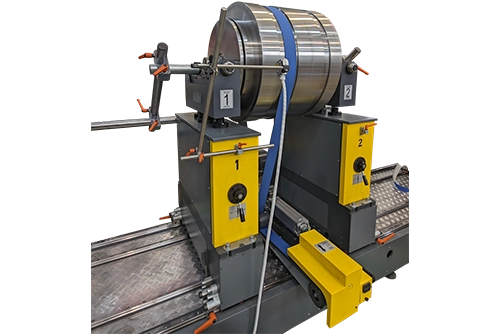

BS-44-8000S 30 - 8000 2750 * 65/250-5650 * 20-400 0,25 30,0 Ременной / Карданный / Комбинированный 4000х1700х1900 3980 380/ 50/ 3

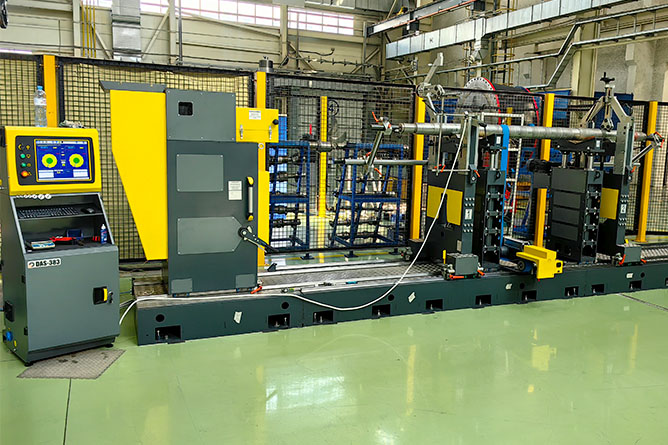

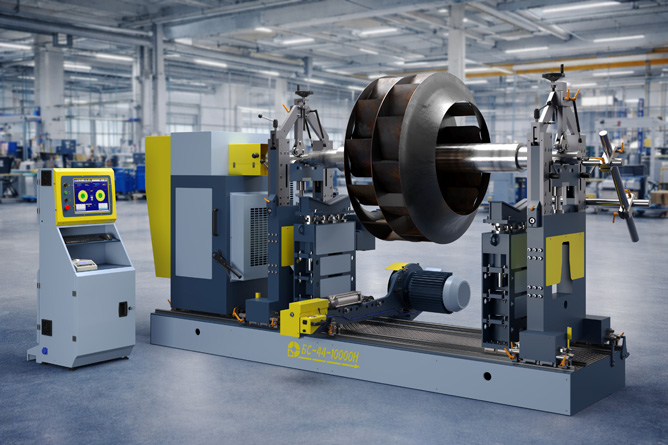

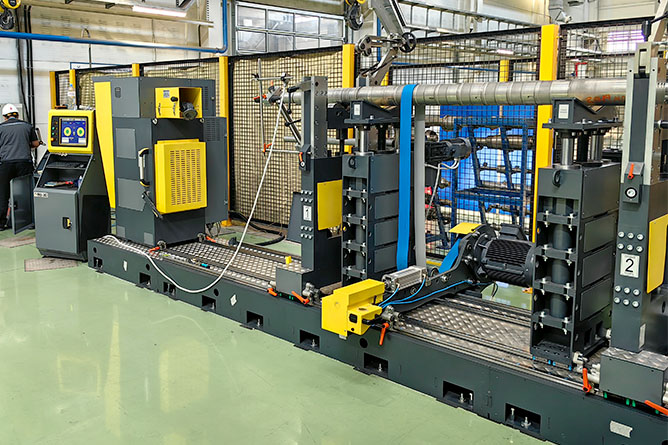

BS-44-10000H 80 - 10000 2850 * 70/280-5700 * 20-310 0,25 37,0 Ременной / Карданный / Комбинированный 4000х1700х2000 4350 380/ 50/ 3

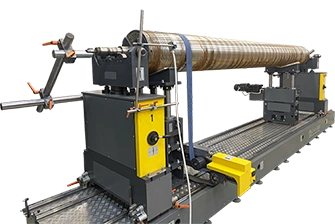

BS-44-10000S 50 - 10000 2750 * 70/280-5650 * 20-400 0,25 37,0 Ременной / Карданный / Комбинированный 4000х1700х2000 4250 380/ 50/ 3

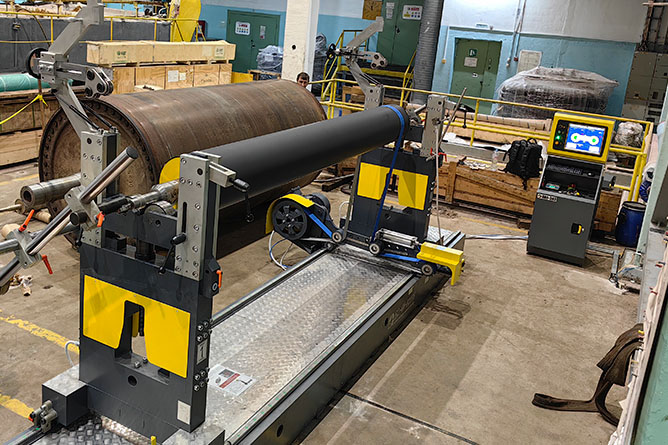

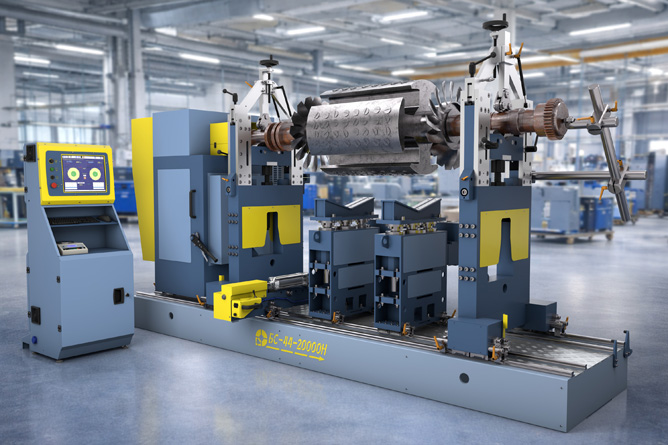

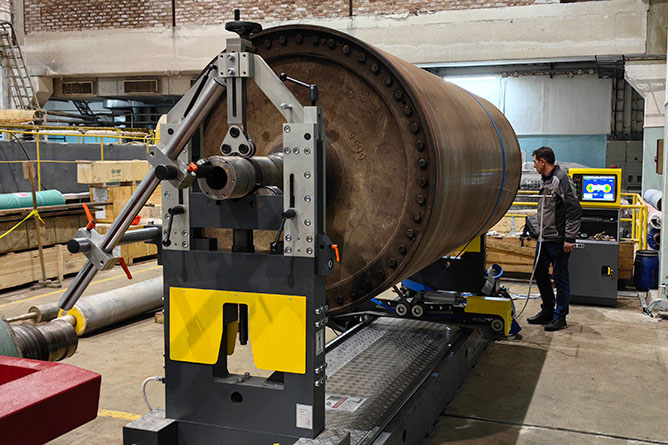

BS-44-20000H 100 - 20000 2850 * 5650 * 25-500 0,4 55 Ременной / Карданный / Комбинированный 7000х2200х2000 6550 380/ 50/ 3
BS-44-20000S 1000 - 20000 2750 * 5400 * 25-500 0,4 55 Ременной / Карданный / Комбинированный 7000х2200х2000 6230 380/ 50/ 3
BS-В-10 0,5 - 10 до 600 0.2 0,55 500х1500х650 180 380/50/3
BS-В-20 1,0 - 20 до 600 до 0,5 0,75 750х750х800 240 380/50/3
BS-В-60 1,0 - 65 до 800 до 0,5 2,2 1100х1100х1250 540 380/50/3
BS-В-200 1,0 - 200 до 1000 до 1 5,5 1200х1200х850 1750 380/50/3
BS-В-600 5,0 - 600 до 1300 до 2 11 1430х1430х890 2340 380/50/3
BS-44-1250 5 - 300 100-1250 0,3 18,5 Прямой 1500х1200х800 700 380В/50 Гц/3 фазы

Таблица содержит данные, относящиеся к стандартной конфигурации станка. Большая часть параметров может быть изменена по требованию заказчика.

1 2 3 Диаметр
4 5 Длина
Область применения
Получить коммерческое предложение и референс-лист
Укажите свои контактные данные для получения коммерческого предложения и референс-листа

Rotor Balancing Machines

Universal horizontal balancing machines are designed for performing precise balancing of various types of rotors. Their characteristics enable them to handle a wide range of rotors – from small ones, such as electric motor rotors or automotive turbocharger rotors, to large ones, such as gas turbine and generator rotors. The machine design ensures a stable position of the rotor being balanced in the horizontal plane, providing high operational accuracy. Unlike vertical models, where the final result of unbalance correction can be influenced by gravitational forces or the human factor, such as improper clamping, horizontal machines clamp and hold parts more securely. This is especially important when working with large, heavy, or long rotors. Situations where the slightest misalignment can lead to balancing errors are eliminated.

LLC "Robals" manufactures balancing machines for rotors with various purposes and different mounting methods. Our range allows for flexible configuration of production processes and work with diverse types of parts. The stands we produce are suitable for use in various industries, including the automotive industry, agricultural and power engineering. Therefore, despite the universality of our equipment, it is especially important to consider their features and characteristics at the time of selection. One of them is the selection of machine parameters depending on the dimensions of the rotors being processed. For example, high-speed rotors require equipment with increased accuracy, while for large and heavy units, stability and the ability to handle heavy weight are important. Solving these tasks requires not only the correct choice of the machine model but also qualified personnel capable of competently utilizing all the equipment's capabilities.

The technical characteristics of the machine determine its effectiveness in specific production conditions. One of the key parameters is balancing accuracy. It is achieved through the use of modern measurement and analysis systems developed by Robals specialists. These systems instantly and accurately record deviations in indicators and transmit data to the control module, allowing for prompt balancing correction and even distribution of mass across the rotor surface. For some types of parts, such as turbine rotors, balancing accuracy is particularly critical, as even a slight unbalance can lead to emergency situations.

Another parameter to pay attention to is the range of rotor sizes and weights that can be balanced on the machine. Our rotor balancing machines are designed to handle weights from a few kilograms to several tons. Such versatility allows the same equipment to be used in different production workshops and on various lines, which is economically feasible, especially in production environments with a diverse product range.

All machines also support work with various types of rotors, including cylindrical, eccentric, and multi-layer designs. Special tooling and adaptive control systems implemented in LLC "Robals" machines allow for efficient work with any type of rotor, ensuring high accuracy and stability of results.

When choosing a machine, it is important to consider that there are two types of balancing machines: sub-resonant and super-resonant. Sub-resonant models operate at rotational frequencies below resonance and are suitable for balancing small and medium-sized rotors. They provide high stability and accuracy. Super-resonant models operate at rotational frequencies above resonance, allowing for effective balancing of heavy and large rotors, where accuracy and stability are particularly important.

We place special emphasis on the importance of automating balancing processes and incorporate the use of a wide range of additional options into the design of LLC "Robals" machines. The software equipped on these machines ensures ease of operation and allows for prompt unbalance correction. Correction can be performed in several ways: by adding or removing weight at specific points on the rotor, or through mechanical processing – by removing excess material. When additional equipment is installed, these processes can be automated, which is particularly useful in mass production, where human factor errors can lead to delays or defects.
